Honeycomb activated carbon
keyword：
convenient transportation

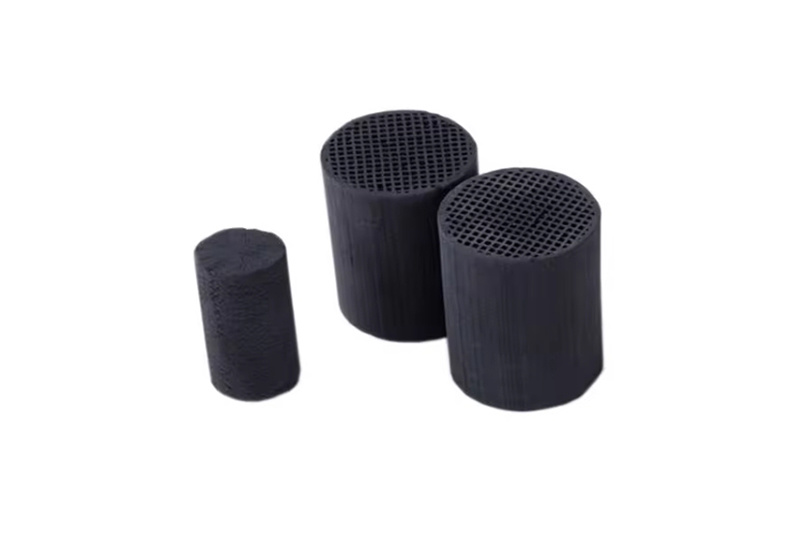

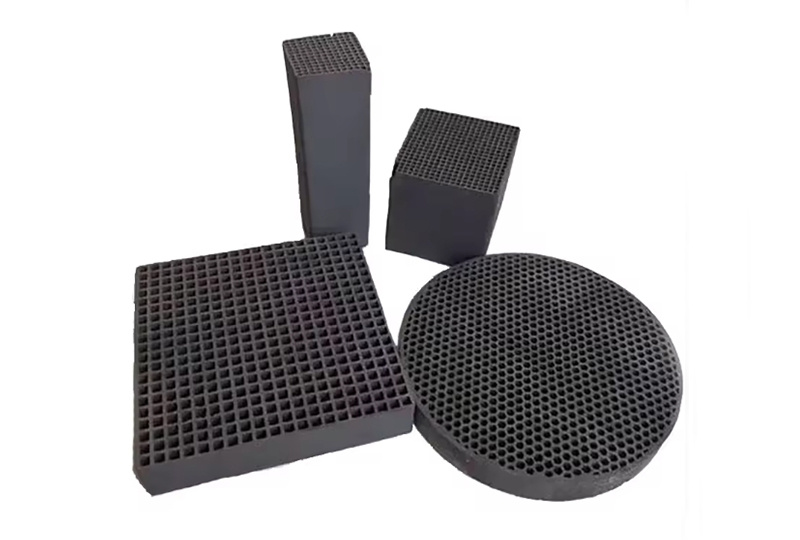

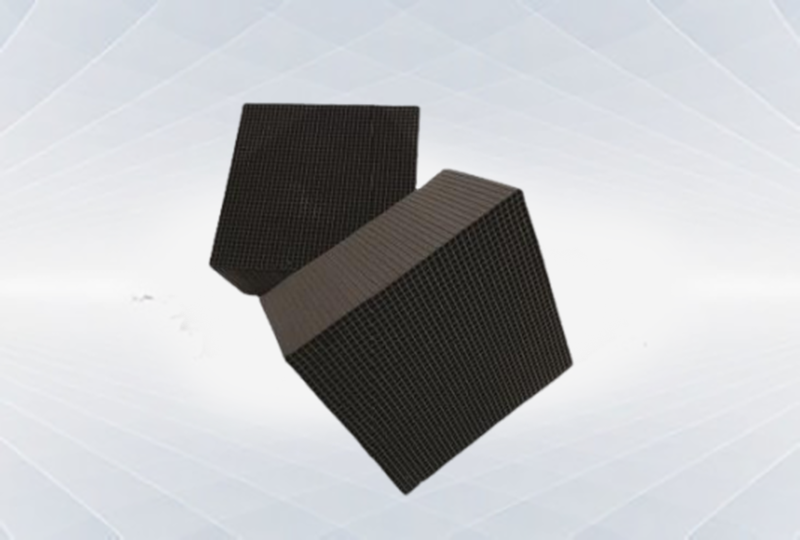

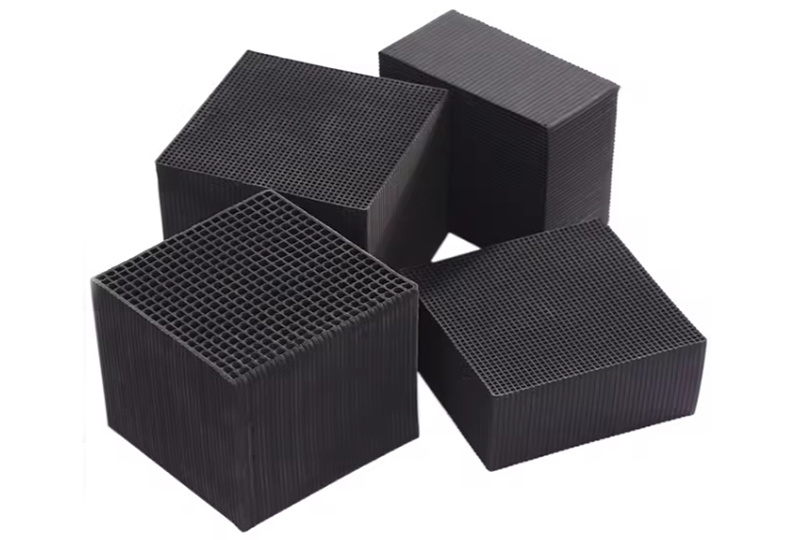

Honeycomb activated carbon
Characteristics of Honeycomb Activated Carbon Products
This product is made of high-quality coal through high temperature. The appearance is black, non-toxic and tasteless, with developed void structure, strong adsorption capacity and high wear resistance. It is widely used in solvent recovery, coal contact carrier, gas phase adsorption and water purification in chemical industry, environmental protection, power plant, electronics, petrochemical, aquaculture, medicine, shipping and other industries.
Technical Proces
It is mainly used to remove pollutants in the air and to separate and purify gases.
Functional Characteristics
It is suitable for the treatment of organic waste in high air volume，low concentration factories, industrial waste gas, and deodorization in daily life. It can also be used as catalyst carrier.
Product Parameter
Specification(mm): 50 * 50 *100mm100*100*10omm
Normal compressive strength: greater than 0.8mpa
Service temperature: less than 400 ℃aperture: 1.5mm ~ 8mm
Hole tower speed: 0.8m/sspecific surface area: more than 700 m2 / g
Appearance: the surface of the product is flat without cracks
|
Project |
Ordinary Honeycomb Carbon |
Water Resistant Honeycomb Carbon |
|
Specification (mm) |
100*100*100100*100*50 50*50*10050*50*50 |
50*50*10050*50*50 100*100*100100*100*50 |
|
Lodine Adsorption Value (mg/ g) |
≥900 |
≥900 |
|
Specific Surface Area (m2 / g) |
950 |
950 |
|
Carbon Tetrachloride Adsorption Rate |
≥70 |
≥70 |
|
Benzene Adsorption |
265 |
265 |
|
Normal Compressive Strength |
≥0.7 |
≥0.8 |
|
Lateral Compressive Strength |
≥0.4 |
≥0.4 |
|
Water Content |
≤5 |
≤2 |
|
Pore Density |
50-300 |
50-300 |
|
Bulk Density |
0.3-0.55 |
0.3-0.55 |
|
Service Temperature |
≤400 |
≤400 |
|
Desorption Temperature |
≤120 |
s120 |
|
Hole Tower Wind Speed |
0.8 |
0.8 |
|
Water Resistance |
NO |
YES |
| Remarks: the performance index or size specification can be made according to the customer's requirements | ||
Application of Honeycomb Activated Carbon
1.Purified exhaust gas
Honeycomb activated carbon can be widely used in various gas purification equipment and waste gas treatment projects, and practice has proven that the purification effect is better than ordinary. The pollutants that can be removed to varying degrees using honeycomb activated carbon include carbon dioxide，nitrogen oxides, carbon disulfide, carbon tetrachloride (ctc), hydrogen sulfide, chlorine, benzene, xylene, acetone, ethanol，ether, methanol, acetic acid, styrene, light gas, gasoline, kerosene, etc. Waterproof honeycomb activated carbon can be used for adsorption purification，separation and recovery, catalyst carrier, and environmental industry, especially suitable for purifying high flow and low concentration organic waste gas.
2.The modified honeycomb like activity impregnated with chemical reagents can absorb acid mist，alkali mist, amine, mercaptan, sulfur dichloride，hydrogen sulfide，ammonia，mercury, carbon monoxide, dioxins, etc.
3.Intelligent toilet for odor removal.
4. Water purification cube.
Application Characteristics of Honeycomb Activated Carbon
1.The honeycomb shaped activated carbon substrate structure is a three-dimensional structure, which increases the contact time and contact area between gas and activated carbon, thereby effectively improving adsorption efficiency.
2.At a wind speed of 2 meters/second, the wind resistance is less than 480 pa.
3.It has good adsorption performance and can also play a role in initial dust collection.
Instructions For Using Honeycomb Activated Carbon
1. It can be directly used or placed in a purification cabinet or adsorption bed for use. if the exhaust gas concentration is high and the emission is large，two purification cabinets and adsorption beds can be rotated for use.
2. During use, try to avoid excessive temperature as it will reduce the adsorption capacity, which decreases as the temperature increases.
3.To avoid high dust content and oil mist, as tar dust mist can clog the micropores of activated carbon, increase resistance, and reduce adsorption efficiency. If the use environment contains a large amount of concentrated dust and tar, a front stage dust removal filter should be installed to achieve better use effect and longer service life.

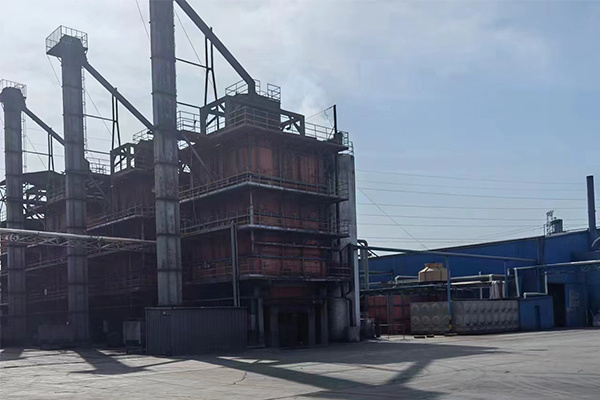

Factory And Equipment Photos
Jingdezhen Jiayuan Activated Carbon Co., Ltd. has advanced workshops and equipment, providing good conditions for activated carbon production. The company will continue to be committed to technological innovation and product quality, and provide customers with better quality activated carbon products and services.
